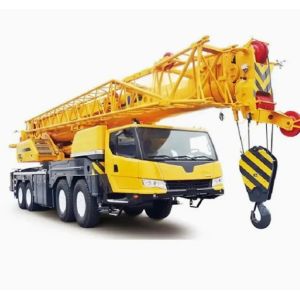

QY100K5C Truck Crane
Product Description
1. Full dimension flat-head cab for chassis, all covered walking surface, double H-type outriggers and a fifth jack are available, as well as 360°ºoperation of boom, power system with various options.
2. It has the longest boom compared to the same class crane boom. Five-section boom of oval cross-section with special sliders, aligning device and high-tension steel plates contribute to smooth telescoping, reliable alignment, light boom weight and strong lifting capacity.
3. Bi-part jib, comprising one lattice section and one box section.
4. Double cylinder plus ropes for boom telescoping. Thick cable and bearing are imported parts and have reliable.
Basic Information
| Model NO. | QY100K5C | Certification | CE, ISO9001 |
| Condition | New | Maximum Lifting Height | >40m |
| Maximum Lifting Weight | >16t | Shaft Number | 3 |
| Crane Jib | Five-Arm | Type | Straight Arm |
| Transport Package | Nude Package | Specification | 14985x2800x3886 mm |
| Trademark | China Top 1 Brand | Origin | Xuzhou, Jiangsu, China |
| HS Code | 8429521200 | Production Capacity | 1000 Units/Month |
Packaging & Delivery
| Package Size | 1495.00cm * 280.00cm * 388.00cm |
| Package Gross Weight | 55000.000kg |
Product Parameters
| Description | Unit | Parameter value |
| Overall length | mm | 15600 |
| Overall width | mm | 3000 |
| Overall Height | mm | 3870 |
| Wheel Base | mm | 1920+3500+1420+1505 |
| Track(front/rear) | mm | 2449/2315 |
| Front/Rear overhang | mm | 2650/2765 |
| Front/Rear extension | mm | 1840/0 |
| Total vehicle mass in travel configuration | kg | 55000 |
| Axle load | kg | 10000 |
| kg | 13000 |
| kg | 9000 |
| Engine Model | | WP6G240E330 |
| Engine rated power | kw/(r/min) | 176/2300 |
| Engine rated torque | N.m/(r/min) | 860/1200-1700 |
| Max. travel speed | km/h | 90 |
| Min. turning diameter | m | 23 |
| Min. ground clearance | mm | 326 |
Packaging and shipping
1. Containers are the cheapest and fastest
2. Bulk carriers are better for large construction equipment
3. Flat rack is better for large construction equipment and does not need to be disassembled
4.RoRo ships are fast and good for all kinds of machines
You can choose any transportation according to your needs
5. FOB, CRF and CIF are all acceptable.
We can ship the machine in bulk as a whole, or we can load it in a container and disassemble it on some parts of the machine, or we can ship it on a flat rack. We can choose the way according to your requirements.
Packaging details: Packaging will be as per customer requirements
Delivery time: 2 working days
Experienced international trade team provides the best full set of services
our service
1) Original parts and good working condition;
2) Low working hours and high work efficiency;
3) Strong work motivation and good stability;
4) Complete accessories and no oil leakage;
5) Competitive price and good skills;
6) Good after-sales service
We hope you can give us the opportunity to negotiate with you by email or phone, or come to Shanghai face to face, we are honored to contact you and serve you, and we promise to provide you with the best prices and services:
1) Book a hotel for you
2) Pick you up at the airport
3) Freely translate for you and guide you when you are free
4) 6 months to 1 year product and after-sales service warranty
1. How to guarantee the condition and lifetime of the machine ?
A: We choose good condtion and less hour used machines. We are available for third part certificate of all of the machines.
And they are all available for your inspection in its place.
2. How to have after sale service from us ?
A: We have old suppliers in China, used or new parts are available for us to get, with reasonable price and in short time.
3. How can customers make visit and checking in China ?
A: We arrange everything ready for your jouney in China, welcome your happy visit!~
